Wireless Handheld Ultrasound Linear Device

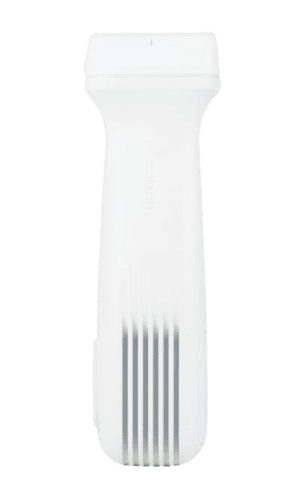

Sonon 500L

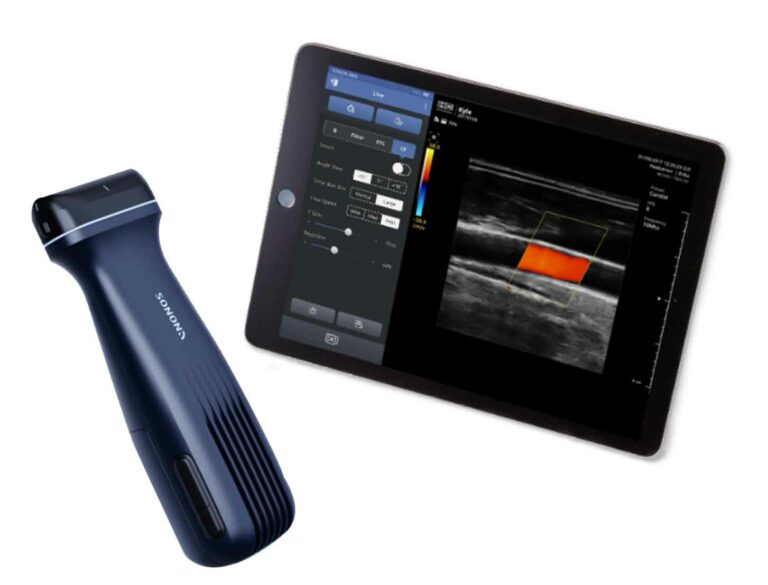

SONON 500L is wireless ultrasound equipment that offers a range of ultrasound diagnoses.
This unique ultrasound probe interfaces wirelessly with the client’s phone or tablet. The client can control the ultrasound probe and collect images using a mobile app on the phone/tablet without an ultrasound generator, cart, or laptop.
Through the use of mobile technology, Healcerion brings affordable, high-quality medical care to clinical and remote locations worldwide. The mobile-based healthcare system is specifically designed to provide physicians and patients with flexibility and portability.
Improved image quality
Sonon 500L utilizes VSETM (Virtual Space Expansion) next-generation ultrasound engine by expanding 1-dimensional beam forming to 2-dimensional beamforming. VSE tech amplifies valid signals which were previously recognized and removed as noise.
Compact design
SONON fits right in your hand and easily in your pocket. This improved portability allows you to scan everywhere you go.
This device is well-suited for primary care practitioners as SONON costs less than 1/10 the price of traditional ultrasound machines.
Wireless Connectivity
SONON has no cords or wires, making it easy to carry and connect to iOS and Android devices. The transducer itself works as a Wi-Fi which makes it possible to perform where there is no internet or stable electric connection. The lightweight device makes it possible for easy access with the simple performance of Wi-Fi features.
compatible with pacs
By supporting DICOM, SONON is designed to store, manage and transfer images securely through PACS server. In such emergency situations including internal bleedings or fetal checkups, SONON can use any networks like Wi-Fi, 3G, LTE, and 5G to share still images (JPEG and DICOM) and video (MPEG4) to other mobile devices between hospitals for assistance.
Imaging features
MSK
US Guided Procedure
Early Screening
F.A.S.T
Trauma
battery endurance
It provides up to 1 hour of continuous scanning with up to 8 hours of standby mode
HEALCERION SONON 500L ULTRASOUND PRESETS
Thyroid
Carotid
Breast
MSK
Vascular
Thorax
aPPLICATIONS
MSK
Vascular: Vein Mappings
Carotid
Sports Medicine
Pain Management
POCUS
US-guided procedures
Early Screening
F.A.S.T.
Trauma
Training
Specification
- Frequency: 5~12 MHz
- Soft AP / 2.4 and 5 GHz
- Depth: 1~6 cm
- Dimensions: 57mm x 178mm x 39mm
- Weight : 260g
Battery
- Type: Rechargeable Li-ion Battery Pack
- Capacity: 1150 mAh
- Charging Time: 1 Hour (Full)
- Battery Life: 1 Hour (Scanning) & 8 Hours (Stand-by)
